Keychron K10 HE Wireless Magnetic Switch Custom Keyboard ISO Layout Collection

SKU: K10H-F1-SW
CHF 0.00 CHF 144.99

Type
Layout Version
Switches




Key specs

  • Layout: 100% full size
  • Connectivity: 2.4 GHz, Bluetooth, wired; 1000 Hz polling rate
  • Switches: Gateron Double-Rail Magnetic Nebula Switch, Keychron Ultra-fast Lime Magnetic Switch; hot-swappable
  • Magnetic switch features: Rapid Trigger, adjustable actuation 0.2 - 3.8mm (Gateron Double-Rail)
  • Build: Aluminum
  • Keycaps: Cherry Profile Double-shot keycaps, shine-through
  • Software: Keychron Launcher remapping; works with Windows, macOS, Linux
  • Battery: 4000 mAh, up to 120 hours
  • Backlight: North-facing RGB
  • Weight: Approx. 1320 g
  • Dimensions: 440.2 x 129.2 mm
  • N-key rollover: Yes (wireless & wired)

Product details

Keychron K10 HE is a full-size wireless magnetic switch keyboard with 2.4 GHz, Bluetooth, and wired connections. It supports adjustable actuation, Rapid Trigger, and key remapping through the Keychron Launcher web app, and is compatible with Windows, macOS, and Linux.

The K10 HE is available in different switch versions.

The Keychron Ultra-fast Lime version supports only Keychron Ultra-fast Lime Magnetic Switches.
The Gateron Double-Rail version supports only Gateron Double-Rail Magnetic Switches.
Other magnetic switches (e.g., Gateron Magnetic Jade or KS-20) are not supported.

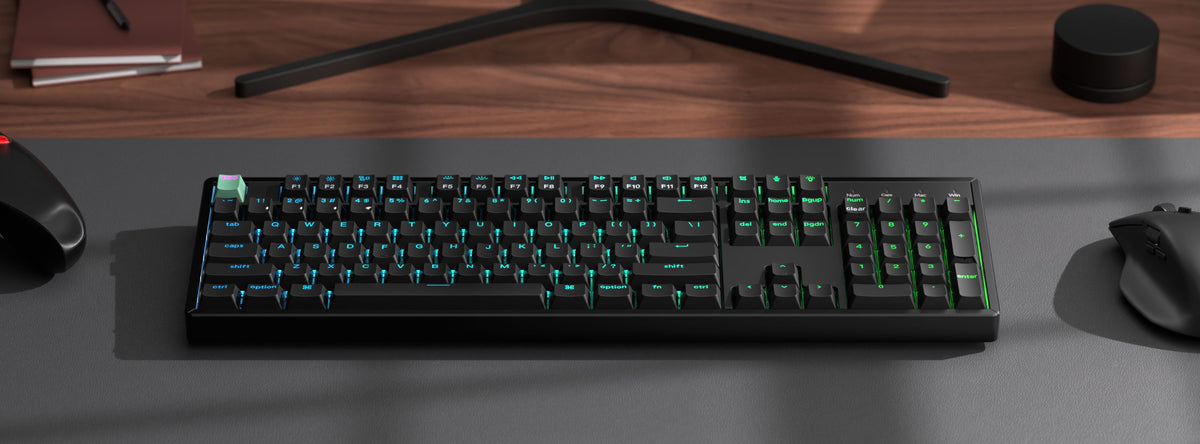

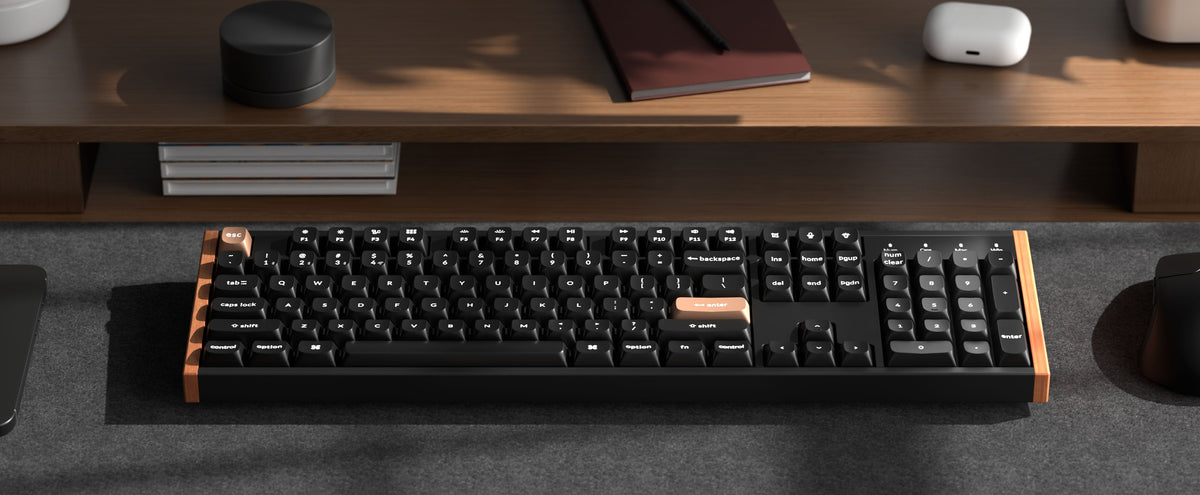

KEYCHRON K10 HE

Transform your gaming and typing experience with the Keychron K10 HE. Combining classic mechanical feel with cutting-edge magnetic technology, it offers exceptional performance in a sleek design—enhanced by elegant natural wood accents.

Enhanced Acoustic Foams
Enhanced Acoustic Foams
Hot-Swappable
Hot-Swappable
Magnetic Switch
Magnetic Switch

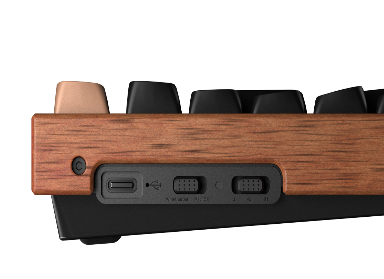

Metal & Wood Frame
Metal & Wood Frame
Mac & Windows
Mac & Windows
Double-Shot PBT Keycaps
Double-Shot PBT Keycaps
Connects up to 3 Devices
Connects up to 3 Devices

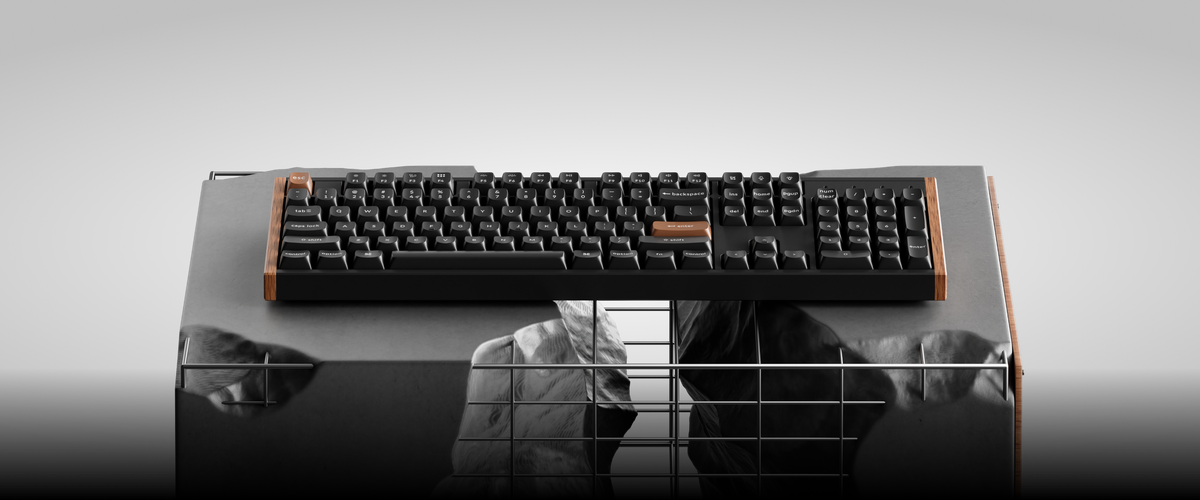

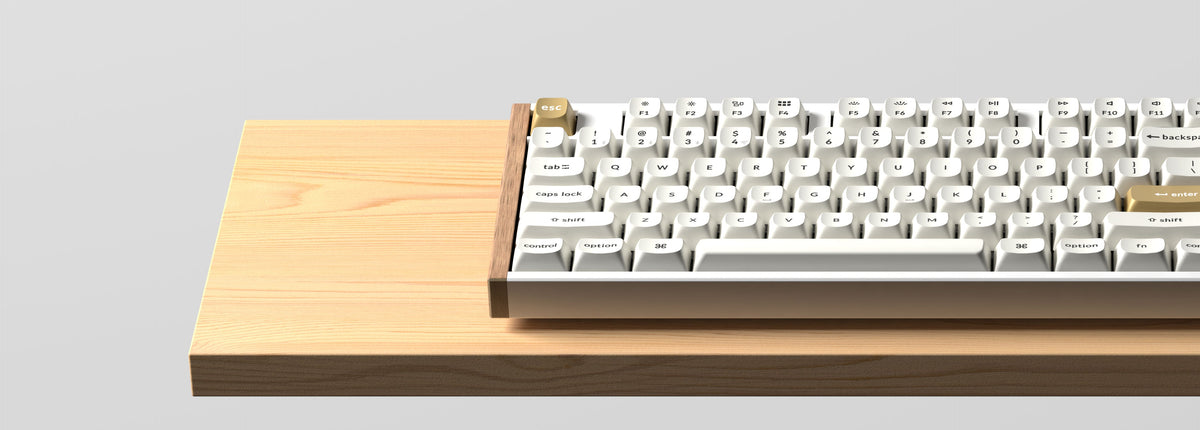

DESIGN

minimalistic aesthetic with natural wood

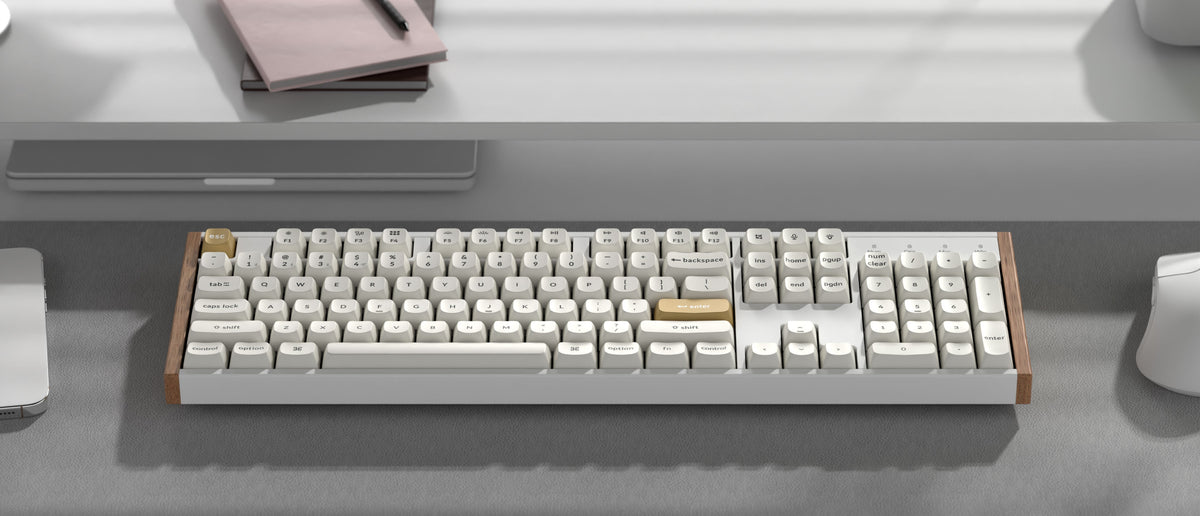

COLOR VERSIONS

Special Edition & Standard Version

The Special Edition offers two colorways, both with natural wood accents—light wood for the white version and dark wood for the black version. Both editions feature OSA profile double-shot PBT keycaps and aluminum with wooden frames. The Standard Version features Cherry profile double-shot shine-through PBT keycaps and aluminum frames.

SWITCHES

Super sensitive FAST RESPONSE

Keychron_Keychron_K10_HE_Wireless_Magnetic_Switch_Custom_Keyboard_Hot-swappable__kc_full_365974ea92.jpg

magnetic switch

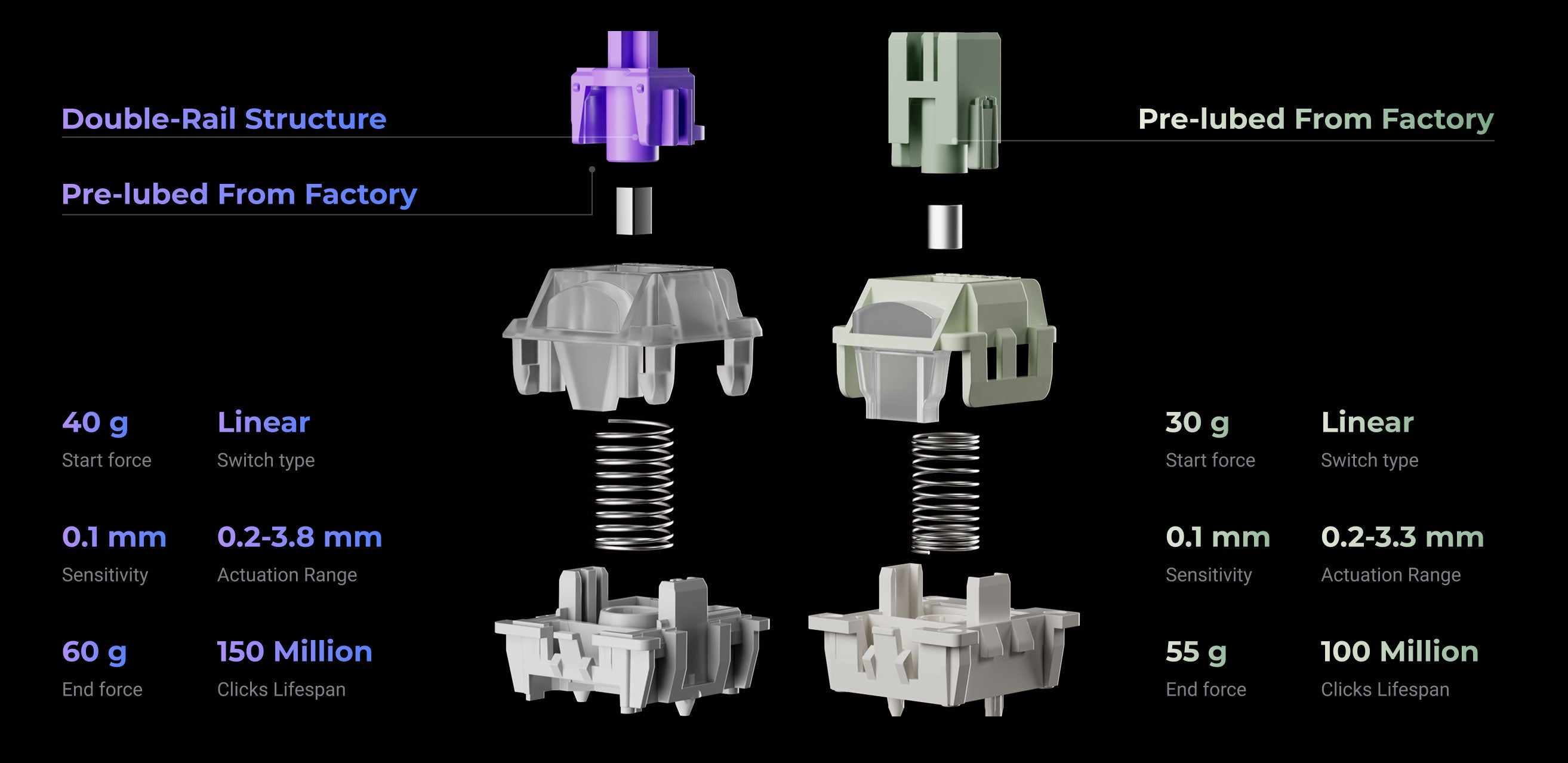

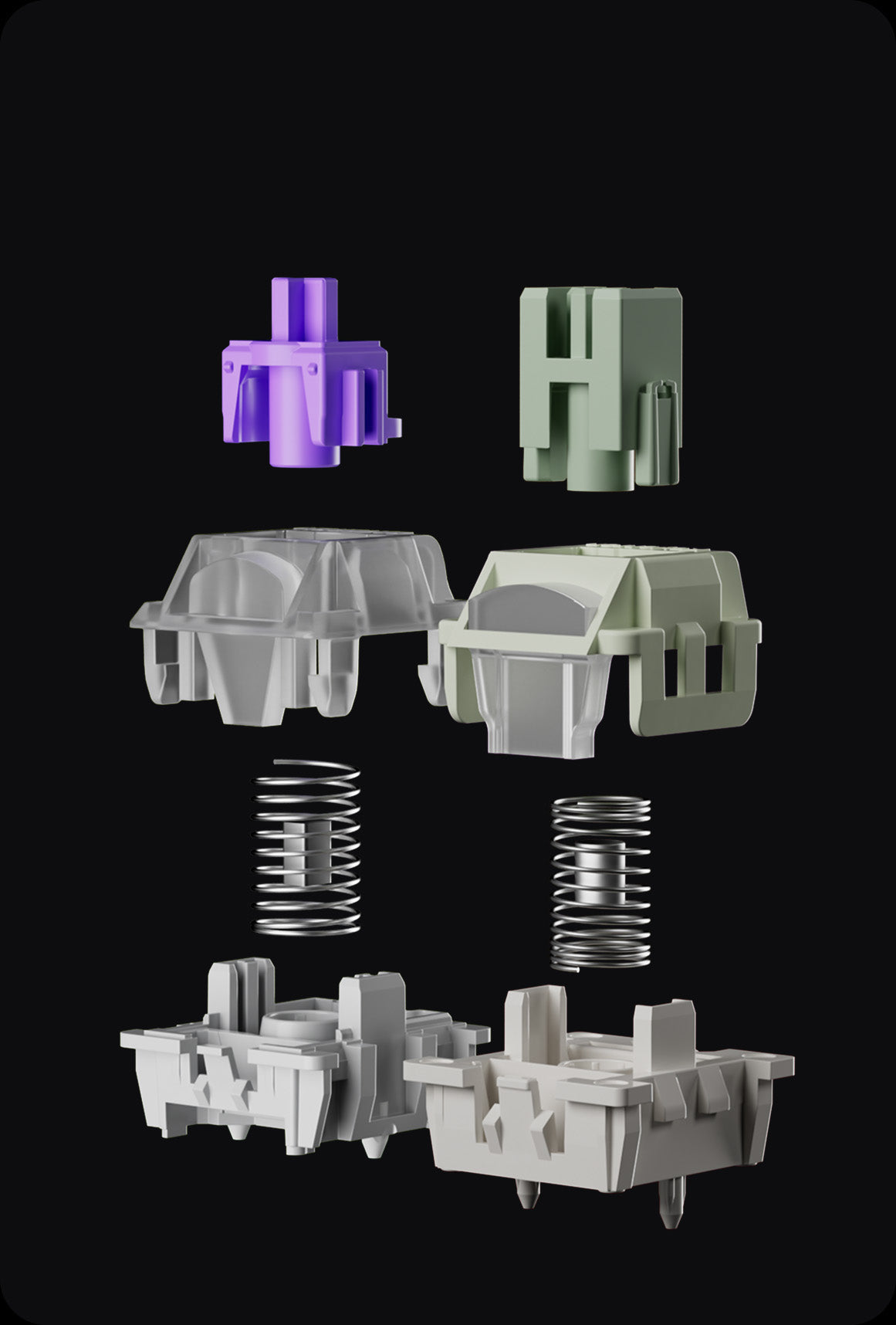

Keychron Ultra-fast Lime & Gateron Double-Rail

The Keychron K10 HE now comes in two magnetic switch versions. Both offer ultra-fast response, stable keystrokes, and precise adjustable actuation.
For a softer, more satisfying typing feel, choose the Keychron Ultra-Fast Lime version. Its POM-based, factory pre-lubed switches deliver a smooth feel with a deep, thocky sound. For a smoother and more stable magnetic switch structure, choose the Gateron Double-Rail version.
*The Gateron Double-Rail version supports only Gateron Double-Rail Magnetic Switches.
*The Keychron Ultra-fast Lime version supports only Keychron Ultra-fast Lime Magnetic Switches.


Magnetic Switch

Adjustable Actuation Point

Customize each key with precision, with tailored actuation ranges depending on the switch type. The Gateron Double-Rail magnetic switch supports adjustable actuation from 0.2 to 3.8 mm in 0.1 mm increments. The Keychron Ultra-fast Lime magnetic switch supports adjustable actuation from 0.2 to 3.3 mm with 0.1 mm sensitivity adjustment, delivering fast and precise trigger control for both gaming and typing. Set shallow keypresses for instant actions and deeper ones for deliberate engagement—helping reduce accidental inputs while improving responsiveness and control.

Magnetic Switch

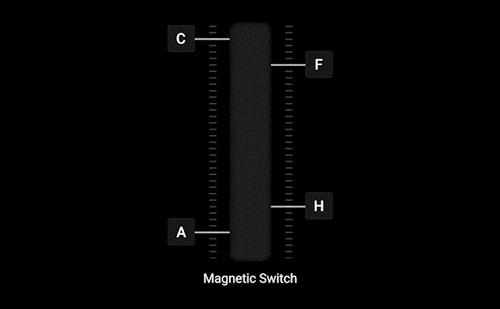

Last Key Priority (LKP) & Snap Click

LKP allows seamless directional changes by prioritizing the last key pressed, ensuring smoother gameplay in titles like Valorant. With Snap Click, deeper keypresses take precedence when two keys are hit at once, automatically resetting shallower presses. *They are disabled by default, but you can easily enable them in our Launcher web app when needed.

Magnetic Switch

One Key. Multiple Actions

Thanks to Dynamic Keystrokes (DKS), you can now assign up to 4 distinct actions per key based on press depth. A light press moves your character, a deeper press makes them run, and releasing the key enables additional commands. This layered control lets you execute multiple moves with ease.

Magnetic Switch

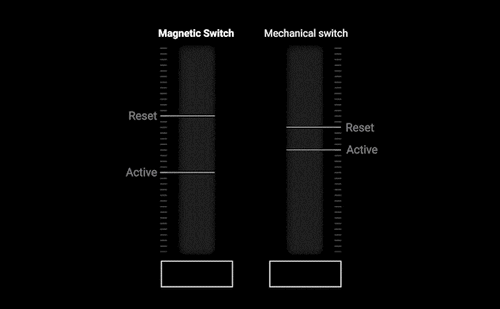

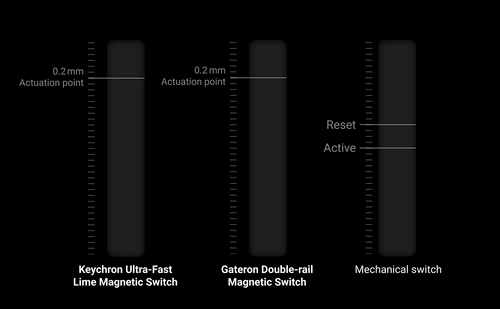

Dynamic Rapid Trigger

Activate or deactivate keys based on how far they travel, not predefined points. This means immediate key reactions—press to activate, release to reset—allowing for faster, more precise keystrokes. In rapid gameplay, this translates to executing complex actions in real-time without delay, giving you a serious advantage during fast-paced sequences.

Magnetic Switch

Analog Mode

Experience the power of Analog Mode on your K10 HE, bringing game controller-like precision to your keyboard. This mode enables variable inputs instead of the usual on/off signals, letting you achieve more fluid and dynamic control. With each keypress, the K10 HE detects how far you press, translating it into different speeds and intensities. Enjoy nuanced control and heightened responsiveness in racing games, sports simulations, and more.

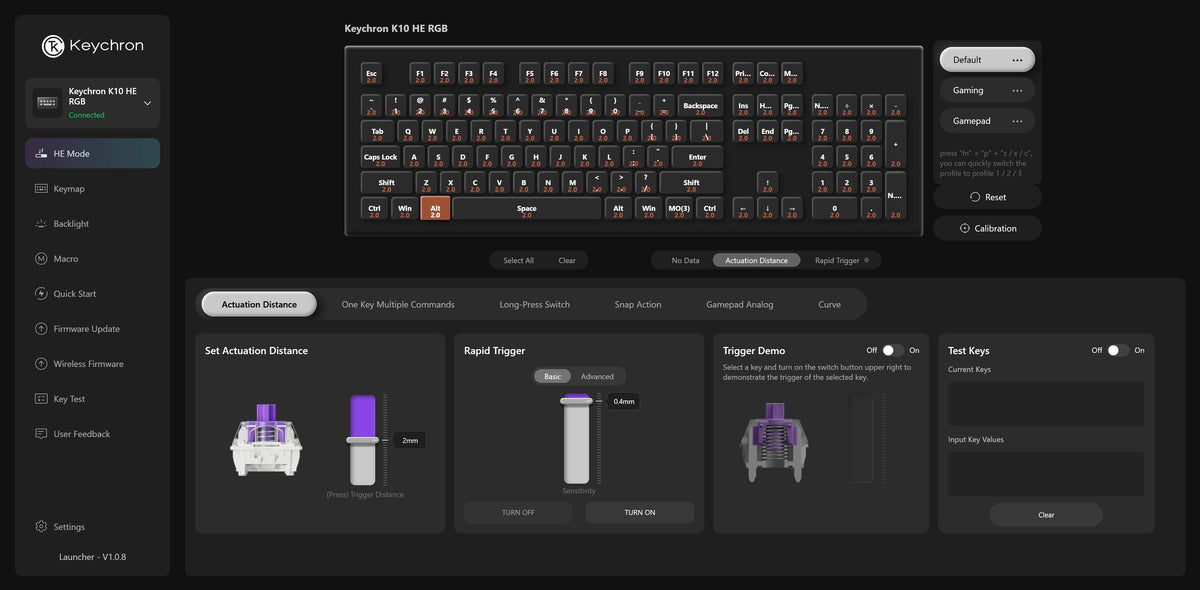

LAUNCHER WEB APP

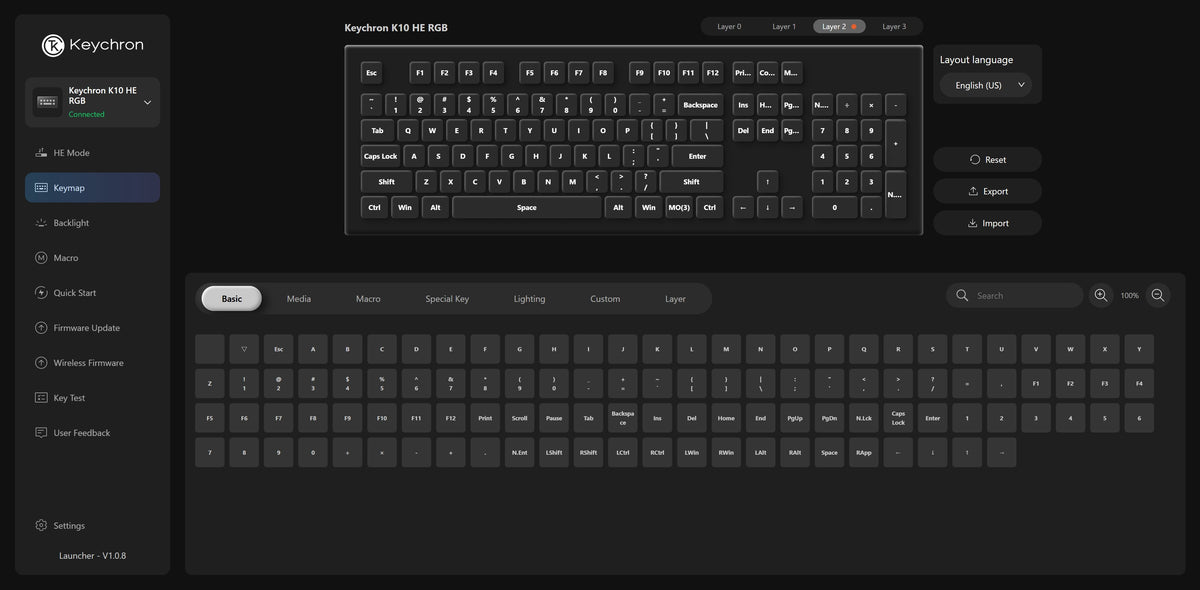

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

HE Mode
Keymap
Backlight

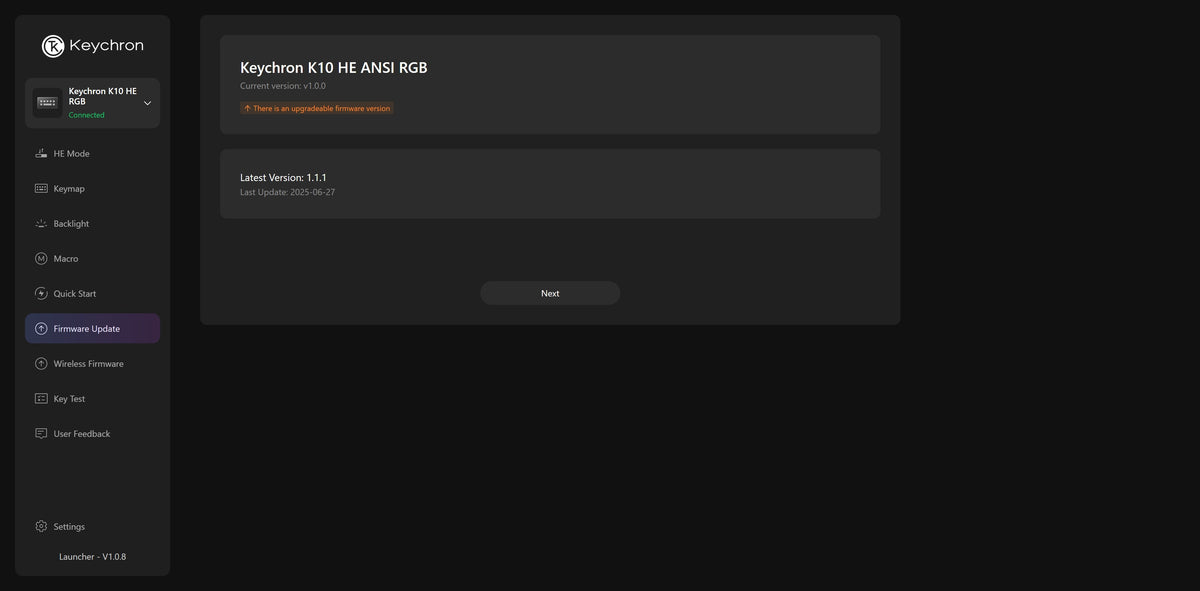

Firmware

PRECISION

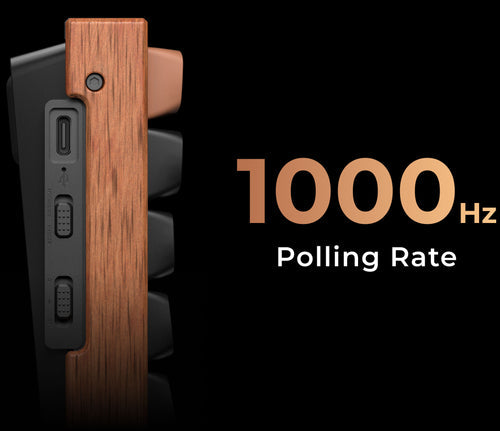

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the K10 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the K10 HE via Bluetooth 5.2 to three devices.

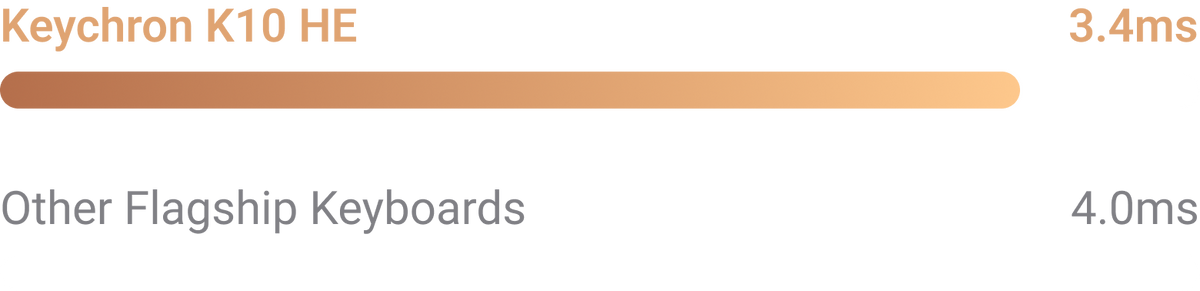

Industry-leading Latency Performance

Industry-leading Latency Performance

The K10 HE keyboard delivers exceptional latency performance within its class, outperforming other flagship keyboards in the industry.

*The performance data is sourced from the third-party testing website RTINGS.

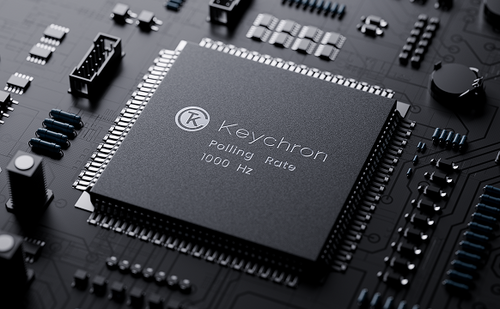

POWERFUL ARM CORE

An Epic Core Inside The Keyboard

Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

EXPERIENCE

smoother, faster, more satisfying

Customise

Satisfying Keyboard Acoustics

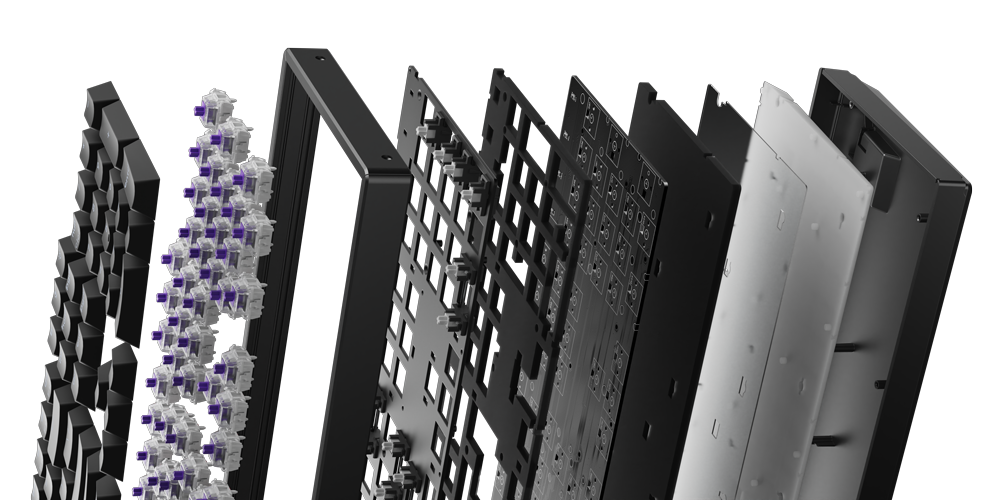

With pre-lubed switches, 3.5 mm thick EVA acoustic foam, EPDM foam, and a silicone pad inside the keyboard, the Keychron K10 HE delivers an exceptionally satisfying, soft, and thocky typing sound, enhancing your typing experience.

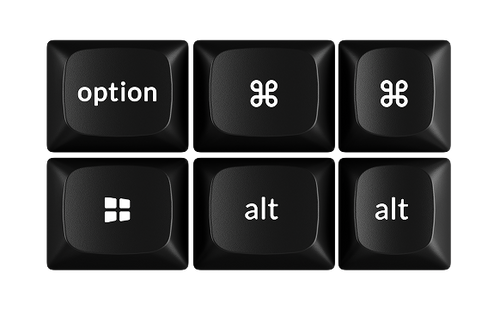

CUSTOMIZE

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the K10 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

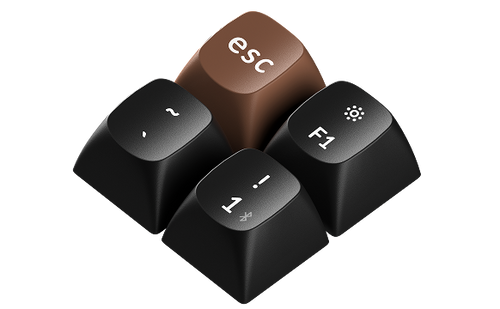

KEYCAP

Double-shot PBT Keycaps

The PBT keycaps (shine-through cherry profile on the standard version, non-shine-through OSA profile for the special editions) will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

CUSTOMIZE

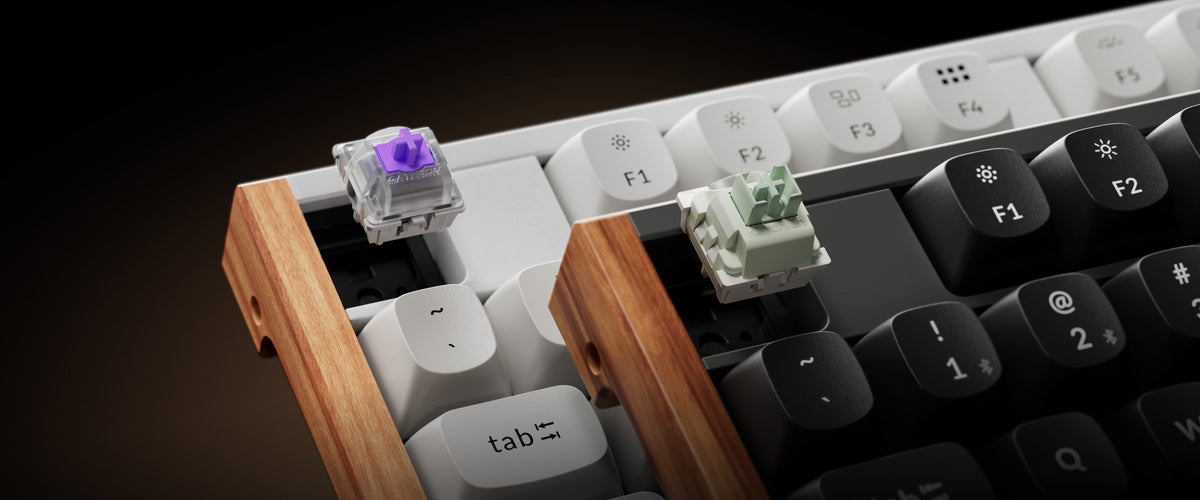

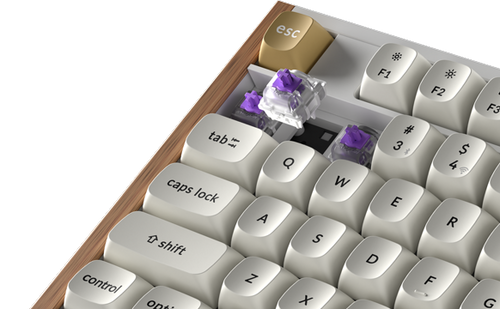

HOT-SWAPPABLE

Unlike mechanical switches, which depend on physical contact, magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible magnetic switches. *The Gateron Double-Rail version supports only Gateron Double-Rail Magnetic Switches. *The Keychron Ultra-fast Lime version supports only Keychron Ultra-fast Lime Magnetic Switches.

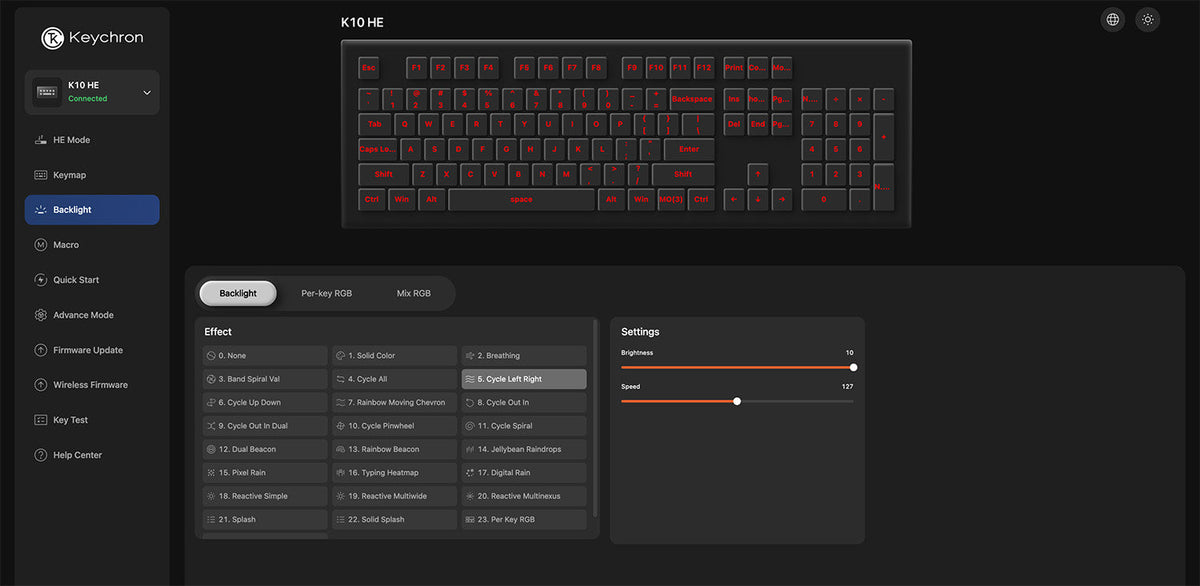

backlight

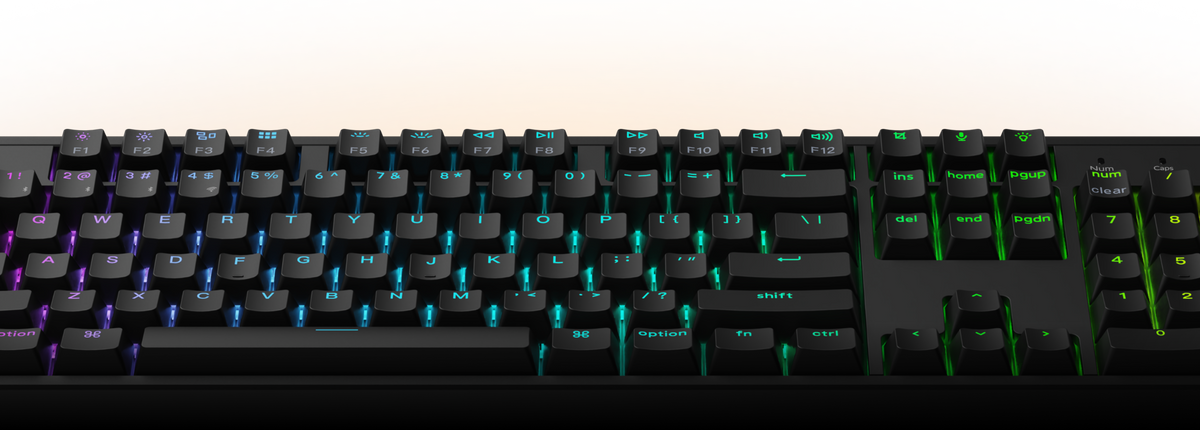

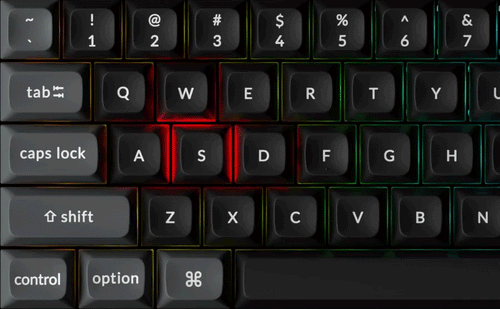

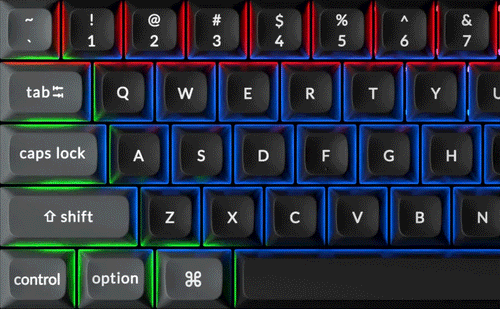

Unlock Dynamic Backlit Control

Go beyond standard presets with 22+ RGB backlight settings — including a static white option. Our advanced lighting engine includes two powerful features to fuel your creativity: Per-key RGB and Mix RGB. You can further fine-tune and remap keys with ease, crafting your unique style with vivid, dynamic RGB control.

rgb backlight

rgb backlight

RGB BACKLIGHT

MIX RGB

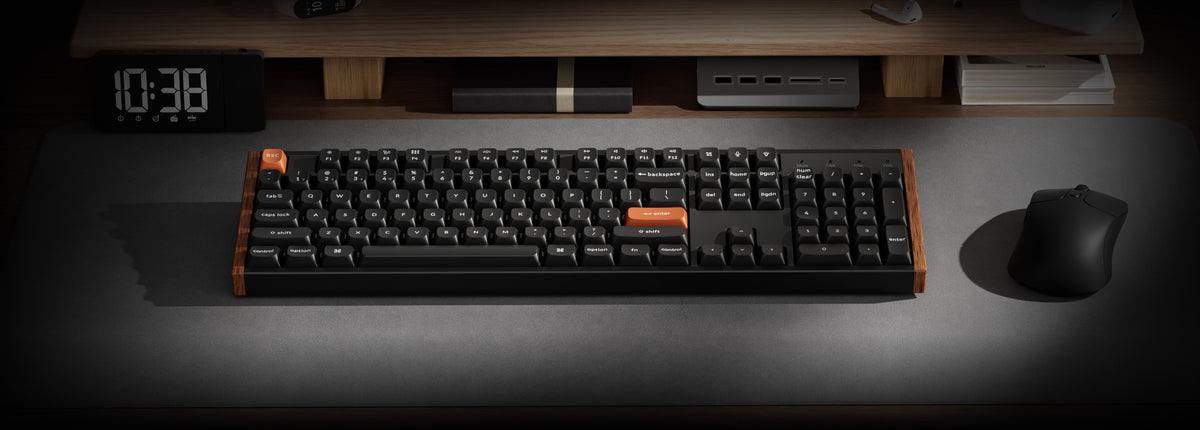

DETAILS

Specifications Packaging

Keychron-K10-HE-Swappable-RGB-Backlight-Aluminum-Keycrhon-Ultra-Fast-Lime-Switch-Special-Edition-Black-3__kc_full_2a11c1609c.jpg

Guide

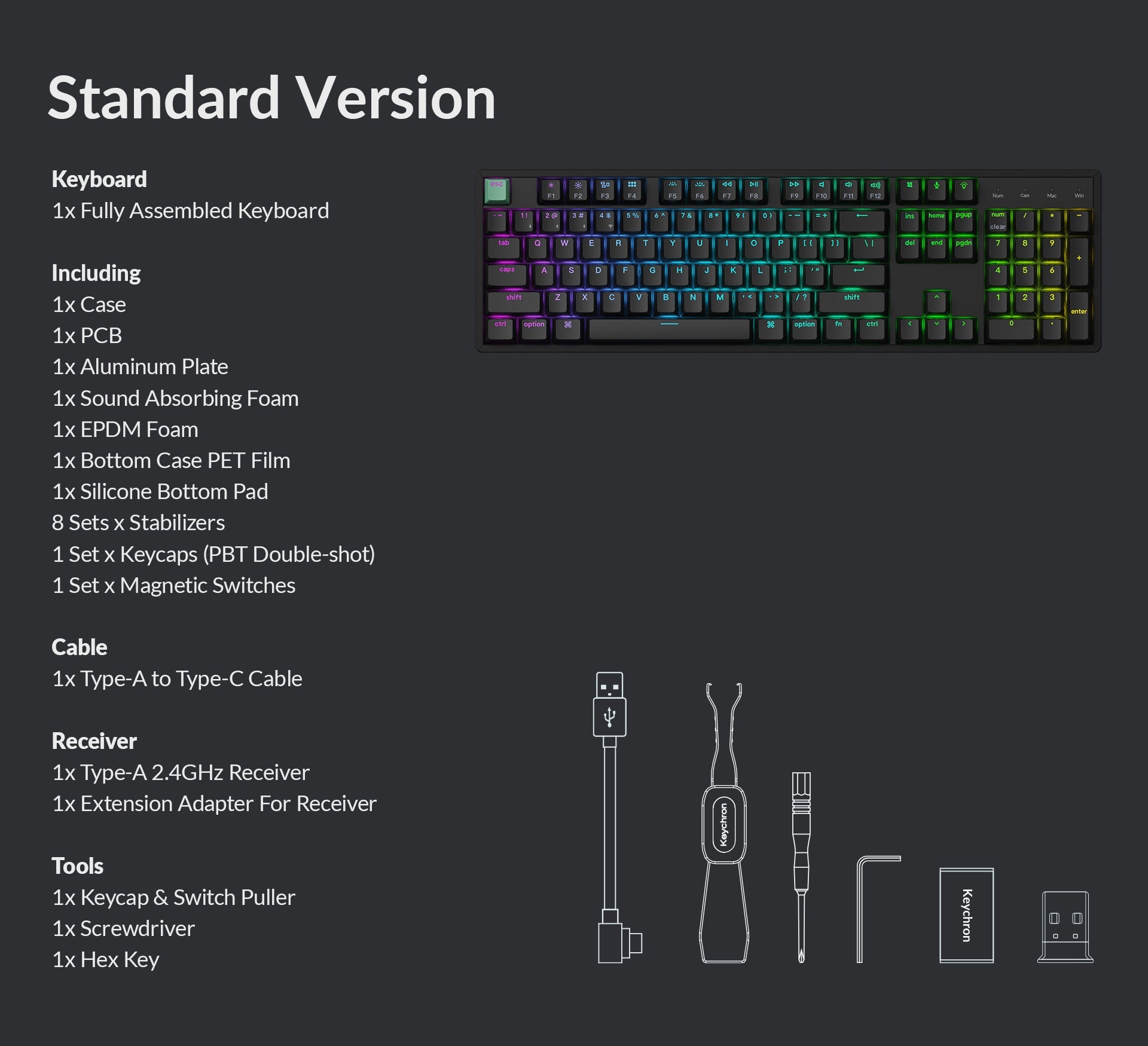

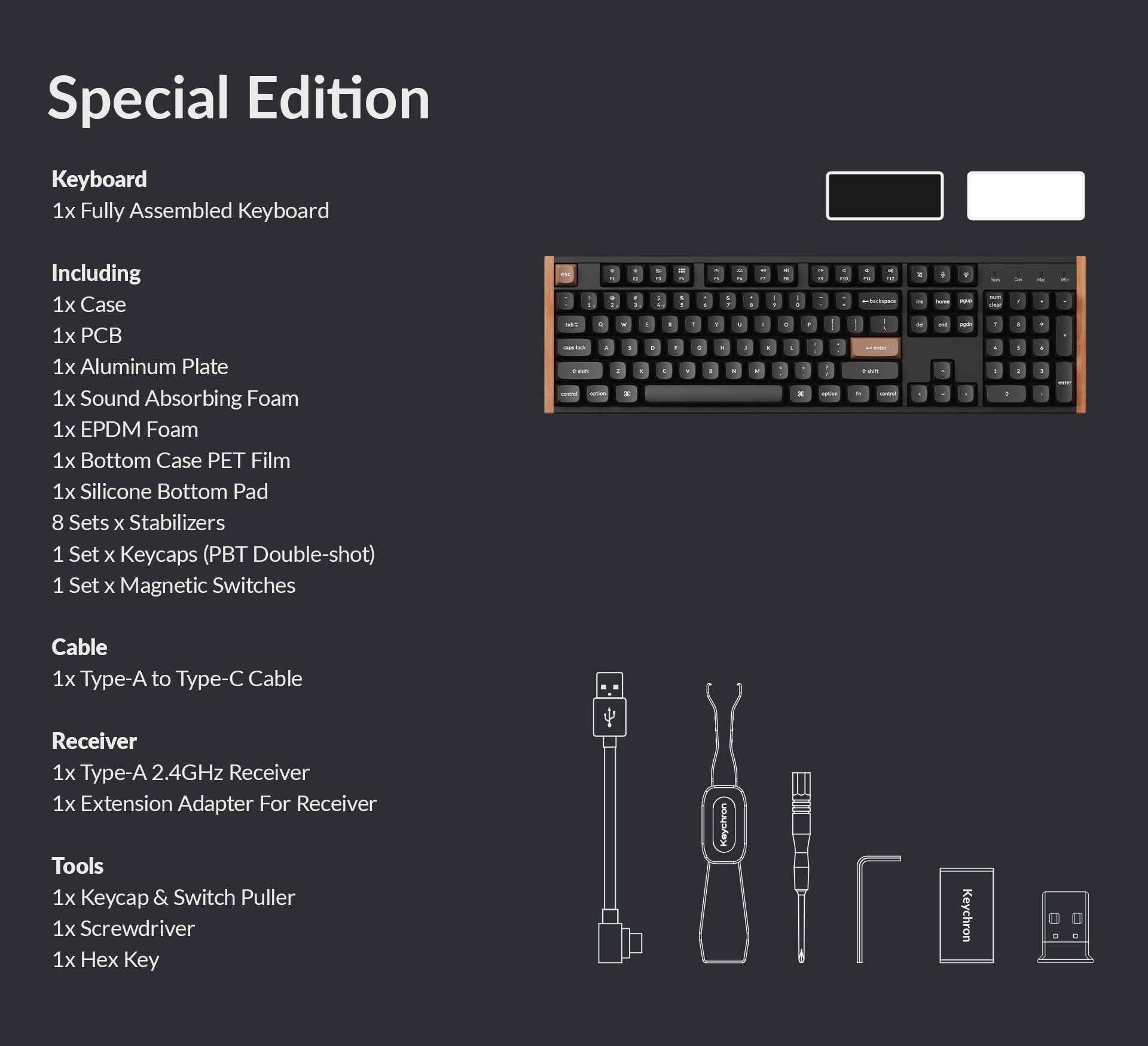

What's In The Box?


Guide

Series Differences

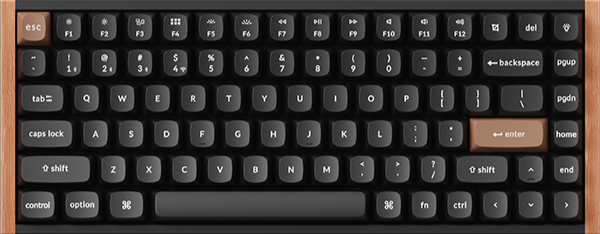

K HE

K HE

2.4GHz
Bluetooth
Wired

EVA Foam
EPDM Film
Bottom Case PET Film
Silicone Acoustic Pad

Magnetic
Gateron Double-rail Magnetic
Keychron Ultra-fast Lime Magnetic

OSA Double-shot PBT
Cherry Profile Double-shot PBT
(Shine-through)

Adjustable Actuation Point

Rapid Trigger

One Key Multiple Commands

Gamepad Analog

LKP (Last Keystroke Prioritization)

256KB

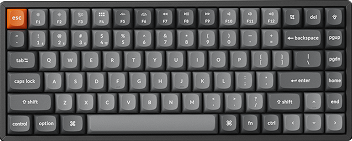

K Max

K Max

2.4 GHz
Bluetooth
wired

Sound Absorbing Foam
IXPE Foam
PET Foam
EPDM Film
Bottom Case PET Film
Silicone Acoustic Pad

Keychron Super Switch
(Normal Profile)

OSA Double-Shot PBT

—

—

—

—

—

256KB

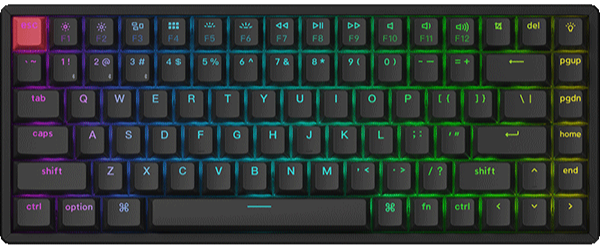

K QMK

K QMK

Bluetooth
wired

Sound Absorbing Foam
IXPE Foam + PET Film
EPDM Foam
PET Film

Mechanical
Keychron Super Switch

Cherry Double-shot PBT

—

—

—

—

—

256KB

Precision

Specs

Product Information
Size
Standard Version: 440.2 x 129.2 mm
Special Edition: 444.6 x 129.2 mm
Front Height
Standard Version: 33.4 mm (incl. keycap)
Special Edition: 32.94 mm (incl. keycap)
Back Height
Standard Version: 40.3 mm (incl. keycaps)
Special Edition: 39.52 mm (incl. keycaps)
Feet Height
/
Angle
3.5° / 7.7° / 11°
Weight
Standard Version: Approx. 1320 g
Special Edition: Approx. 1310 g
Body Material
Standard Version: Aluminum
Special Edition: Aluminum + Wood
Keycap
Standard Version: Cherry Profile Double-shot keycaps, shine-through
Special Edition: OSA Double-shot keycaps, not shine-through
Plate Material
Aluminum
Switch
Gateron Double-rail Magnetic Switch / Keychron Ultra-Fast Lime Magnetic Switch
Stabilizer
Plate-mounted Stabilizer
Backlight
North-facing RGB
Battery
4000 mAh Rechargeable li-polymer battery
Compatible System
Windows/ macOS/ Linux
Operating Environment
-10 to 50℃
Performance
Connectivity
2.4 GHz / Bluetooth / Type-C wired
Polling Rate
1000 Hz (Wired and 2.4 GHz)
125 Hz (Bluetooth)
N-Key Rollover (NKRO)
Yes (wireless & wired)
Rapid Trigger
Yes
Sensitivity
0.1mm
Adjustable Ac-tuation Points
0.2 - 3.8mm (Gateron Double-Rail) / 0.2 - 3.3mm (Keychron Ultra-Fast Lime)
Dynamic Keystrokes
4-in-1 action keys
Wireless Working Time
Up to 120 hours (Lab test results may vary based on actual use)
Hot-swappable
Yes
MCU
256KB
Bluetooth Device Name
Keychron K10 HE
